Series sWAVE

SRP sWAVE POD Series: High-Capacity Electric Infrared Heater

About this Product

The SRP sWAVE POD Series is engineered for the toughest industrial environments. As our highest-capacity electric heater to date, it combines industry-leading radiant output (up to 22.5 kW) with a streamlined installation process. Designed for high-bay warehouses, distribution centers, and heavy manufacturing facilities, the sWAVE POD delivers 90% radiant efficiency. By utilizing medium-wave technology, it heats the floor and workforce directly, providing deeper thermal penetration and superior comfort compared to harsh short-wave alternatives.

Key Features

Industry-Leading 22.5 kW Output
Integrated On-Board Controls
Flexible Output Staging
Rapid-Access Maintenance

Perfect For These Spaces

Manufacturing, Warehouses / Distribution, Industrial Facilities

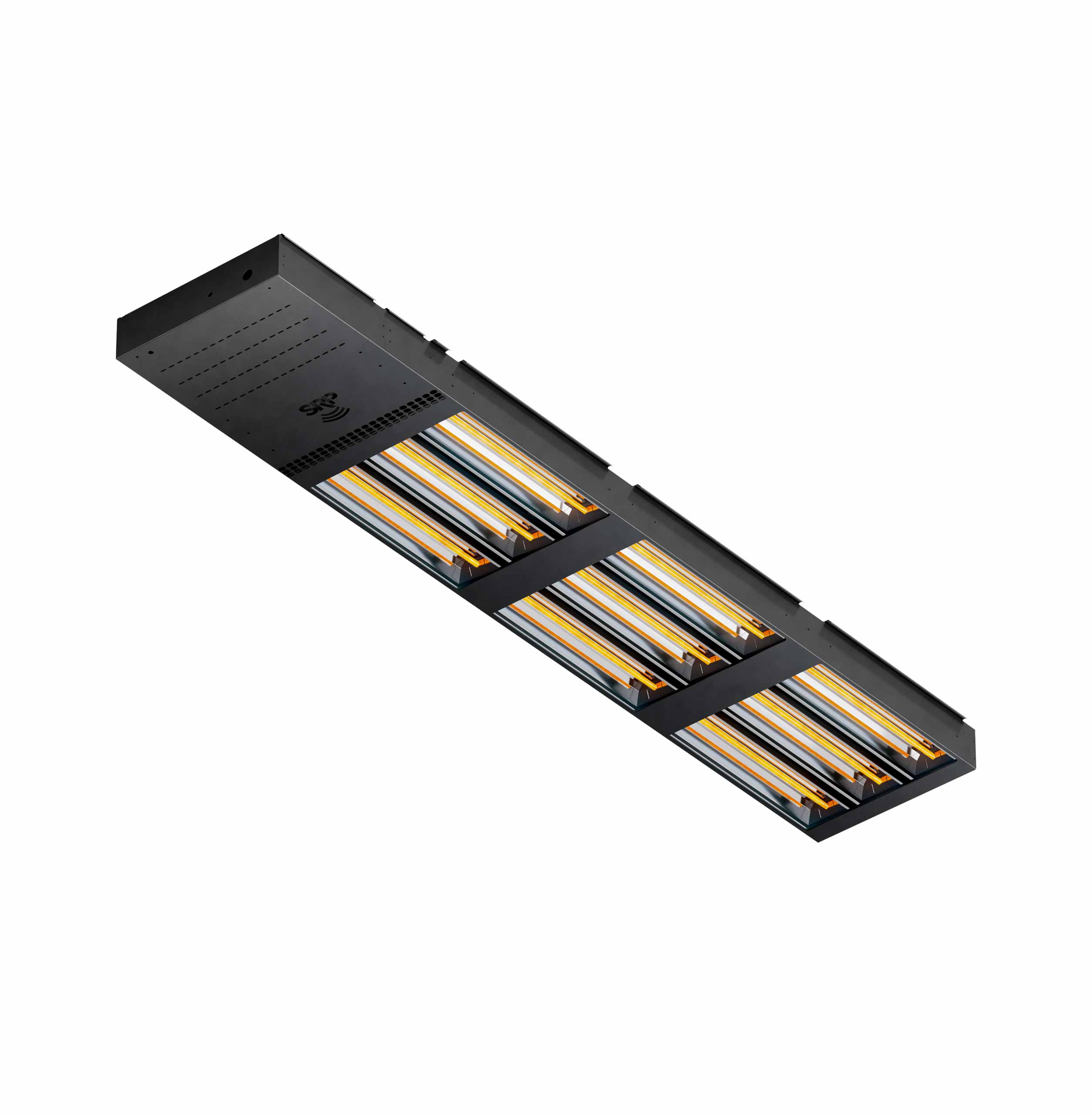

SRP sWAVE POD Series High-Capacity Medium Wave Electric Heater

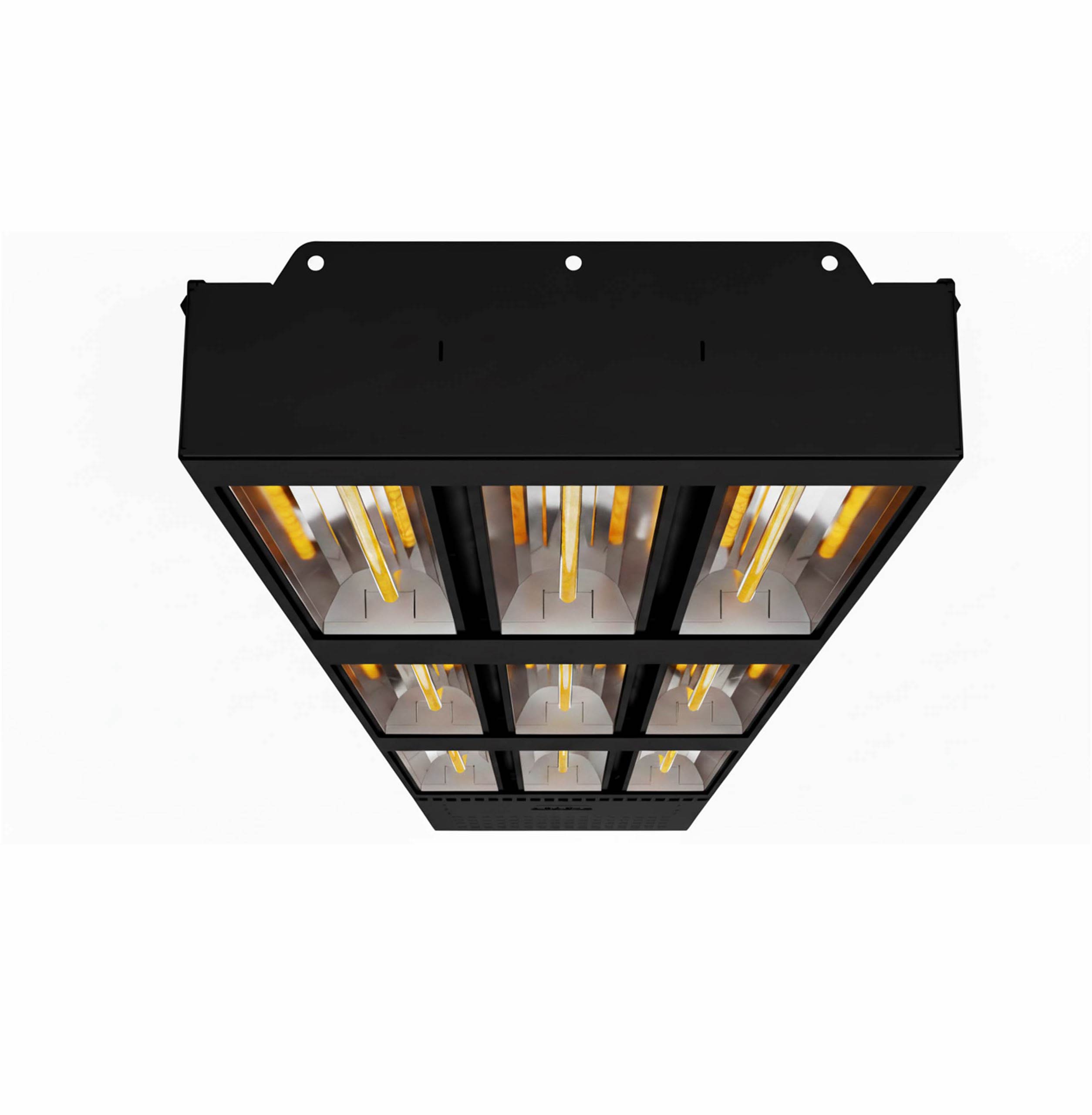

Vertical-SRP-sWAVE-POD-Series-High-Capacity-Medium-Wave-Electric-Heater

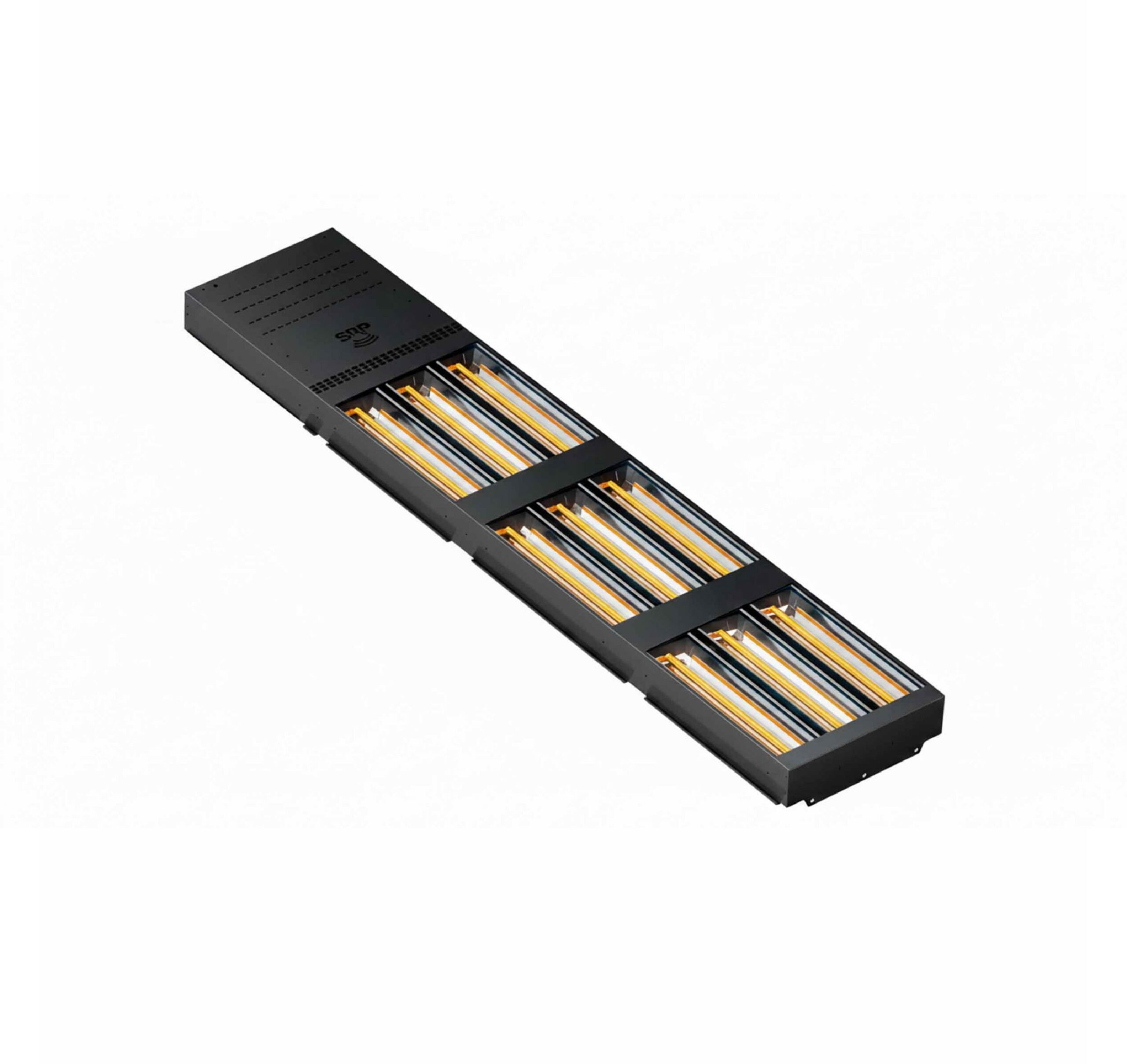

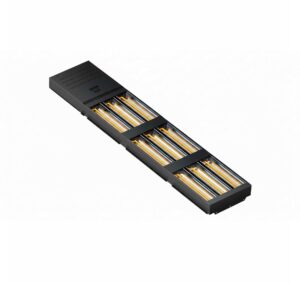

Diagonal-FaceUp-SRP-sWAVE-POD-Series-High-Capacity-Medium-Wave-Electric-Heater

Product Details

Product #sWAVE

Industry-Leading 22.5 kW Output: The sWAVE POD delivers nearly double the capacity of standard electric industrial heaters. This allows facilities to heat larger areas with fewer fixtures, significantly reducing installation labor, required infrastructure, and electrical wiring costs.
Integrated On-Board Controls: Select models feature built-in 24V control logic, eliminating the need for expensive and space-consuming external power panels. The system features seamless compatibility with standard thermostats and Building Automation Systems (BAS).
Flexible Output Staging: The series features modular output staging (in 7.5 kW increments, up to 22.5 kW). This allows facility managers to precisely match the heat output to the building’s current heat load, maximizing efficiency and saving energy during milder seasons.
Rapid-Access Maintenance: Designed for maximum uptime. The simplified housing provides quick, tool-free access to heating elements, minimizing maintenance downtime without the need for complex disassembly.

Specifications & Configuration

With Integrated Controls

Model	Power	Voltage	Phase	Amps	Dimensions	Weight
SWP15M48C	15.0 kW	480V	3	18A	102” x 15” x 6”	83 lbs
SWP15M60C	15.0 kW	600V	3	14A	102” x 15” x 6”	83 lbs
SWP22M48C	22.5 kW	480V	3	27A	102” x 21” x 6”	120 lbs
SWP22M60C	22.5 kW	600V	3	22A	102” x 21” x 6”	120 lbs

Without Integrated Controls

Model	Power	Voltage	Phase	Amps	Dimensions	Weight
SWP15M48	15.0 kW	480V	3	18A	88” x 15” x 6”	66 lbs
SWP15M60	15.0 kW	600V	3	14A	88” x 15” x 6”	66 lbs
SWP22M48	22.5 kW	480V	3	27A	88” x 21” x 6”	96 lbs
SWP22M60	22.5 kW	600V	3	22A	88” x 21” x 6”	96 lbs

Frequently Asked Questions (FAQ)

What is the advantage of medium-wave electric heat?
Medium-wave energy is absorbed much more efficiently by objects (floors, machinery, people) than short-wave energy, which often creates harsh visible light and shadows. The sWAVE POD provides highly effective “mass heating” with 90% radiant efficiency and significantly less visible glare.

Do I need an external control panel?
Not if you select the “C” Series models. These units come equipped with integrated on-board controls, allowing for a direct thermostat or BAS connection. This saves valuable wall space and reduces installation time and complexity.

What is the maximum mounting height?
The 22.5 kW sWAVE POD is powerful enough to be highly effective at mounting heights between 18 ft and 30 ft, making it the ideal heating solution for high-bay logistics centers and heavy manufacturing facilities.
